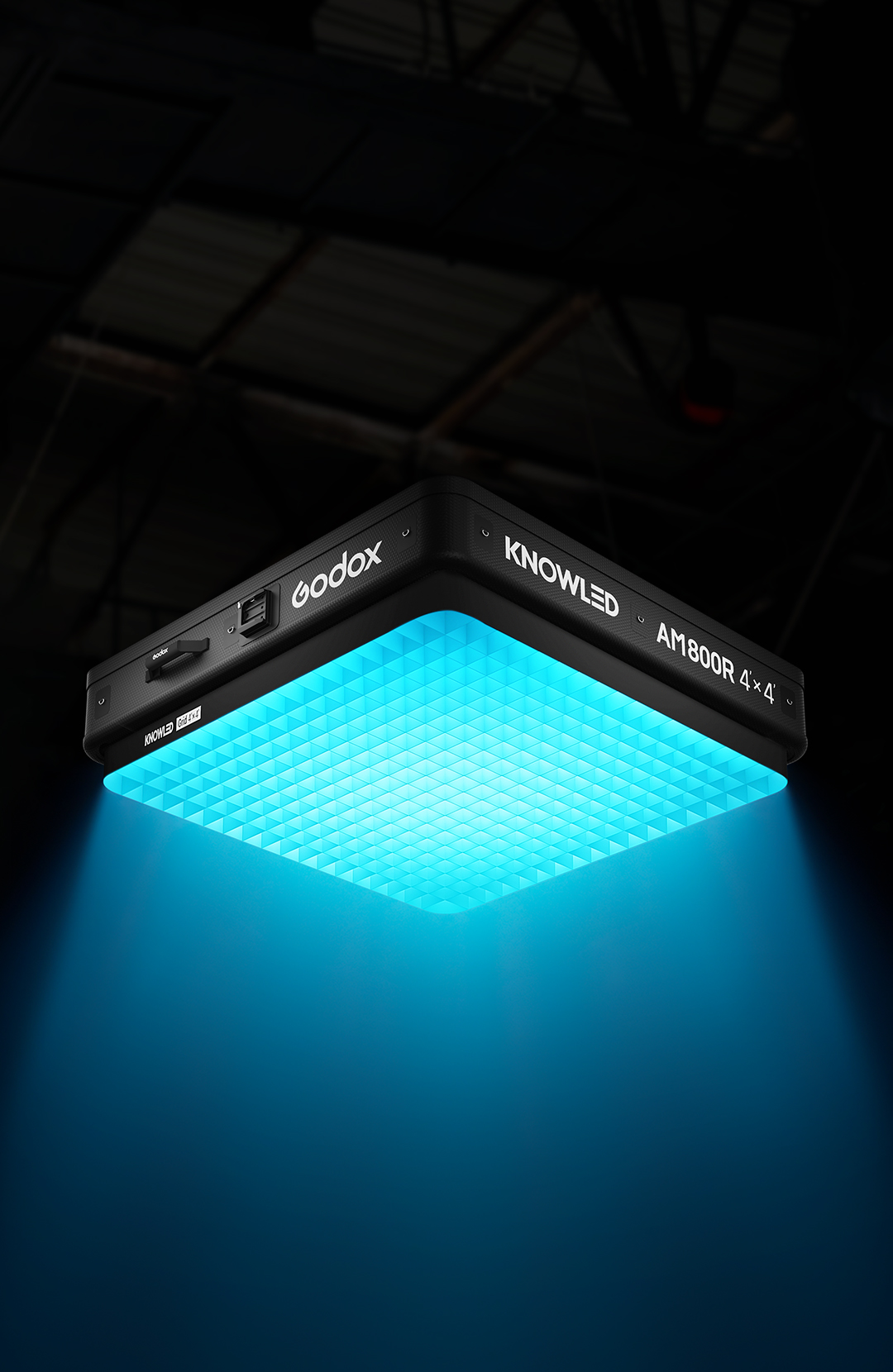

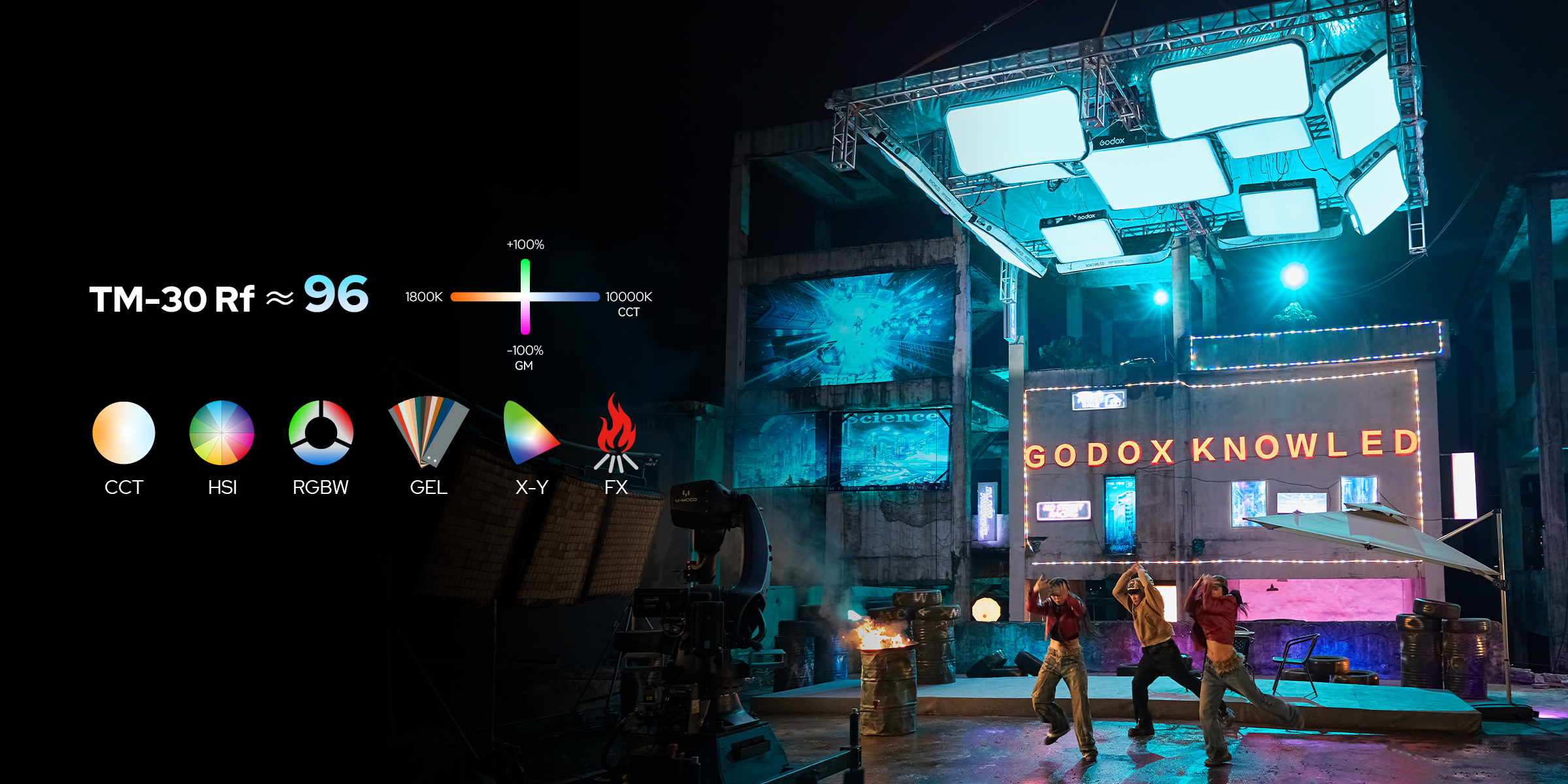

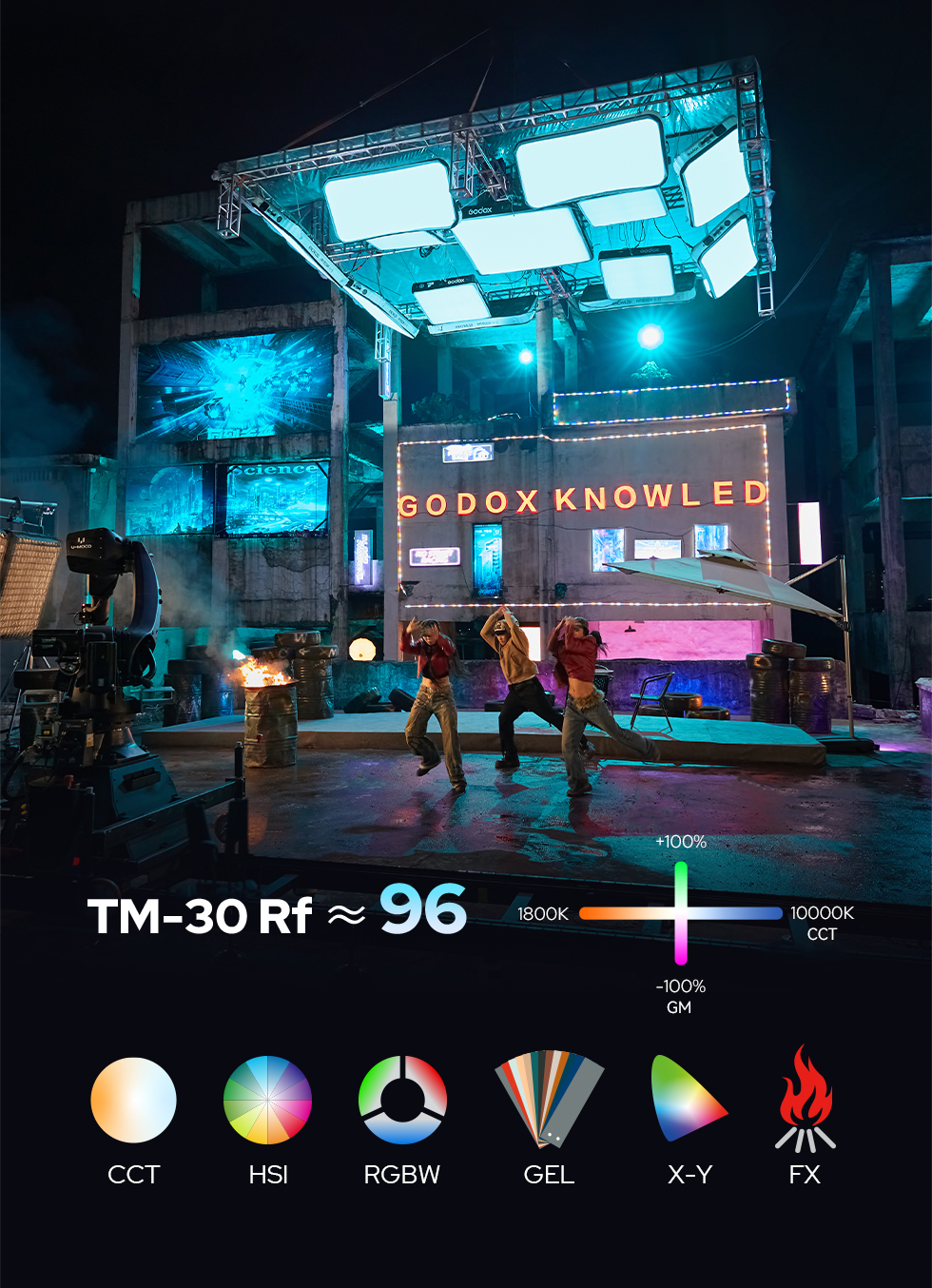

800W Full-Color Soft Light
AM800R delivers powerful full-color 800W output in a soft, even 4'×4' light panel. With a 1,800K–10,000K CCT range, ±100 GM adjustment, and professional CCT / HSI / GEL modes, it gives creators precise control over high-saturation cinematic soft light.

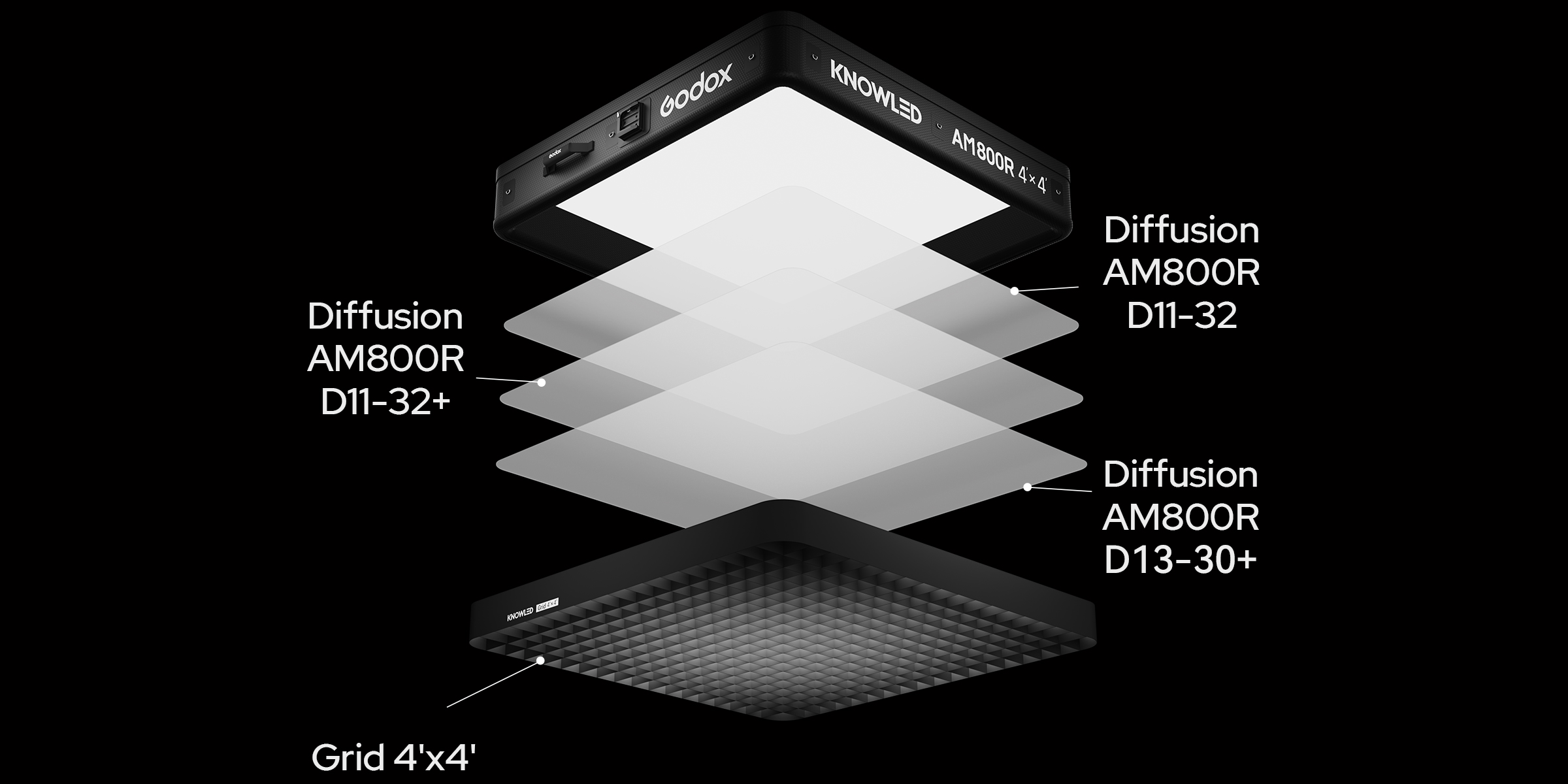

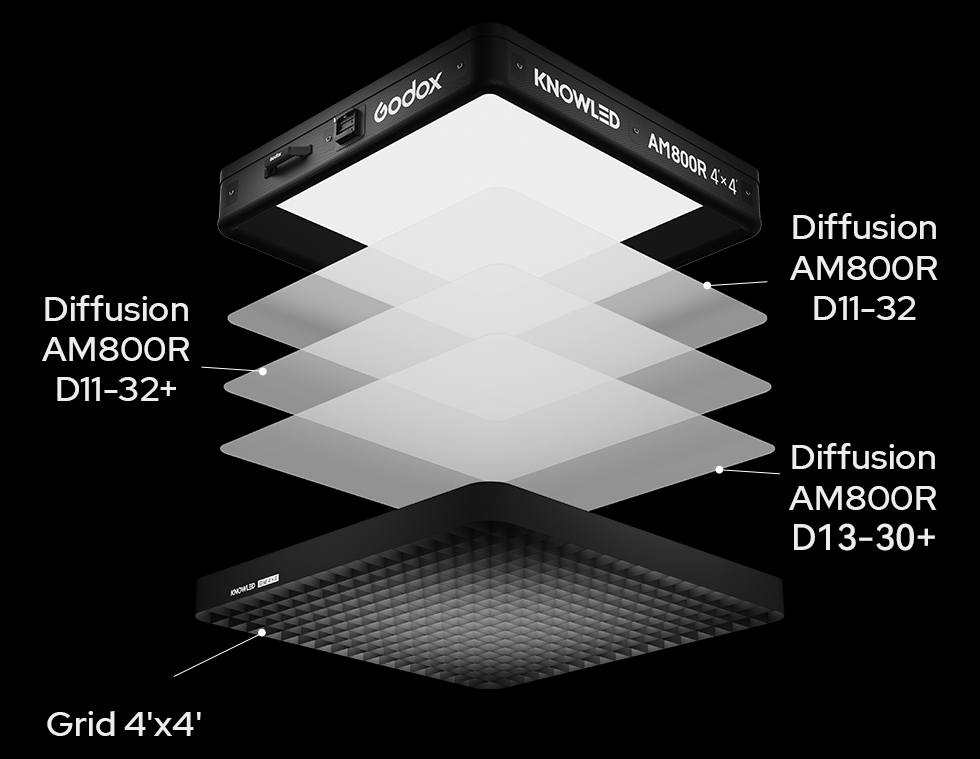

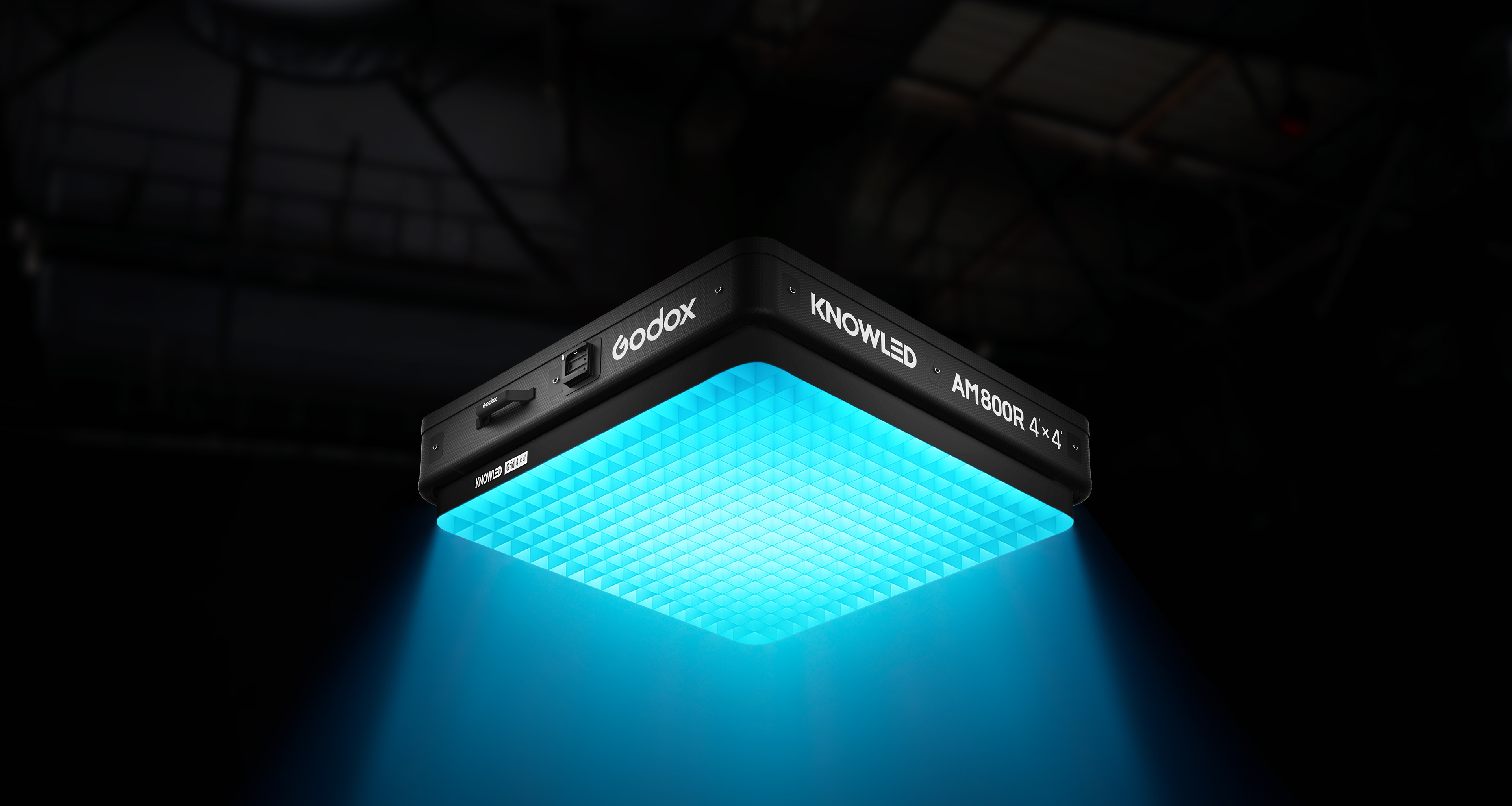

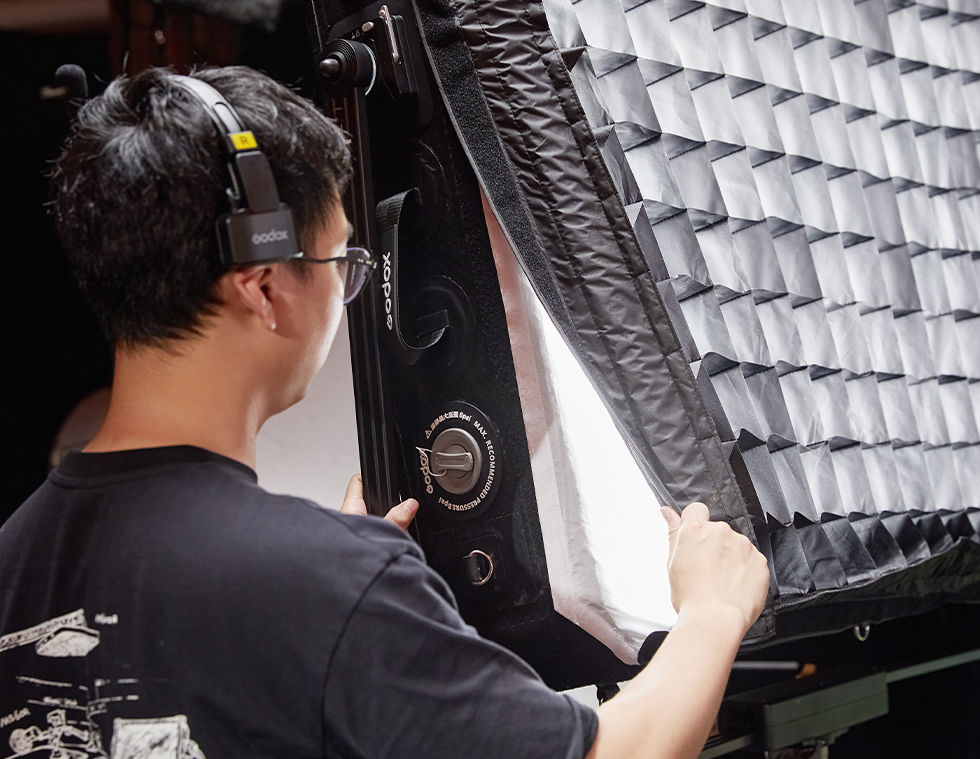

Microstructure Diffusion, Redefined

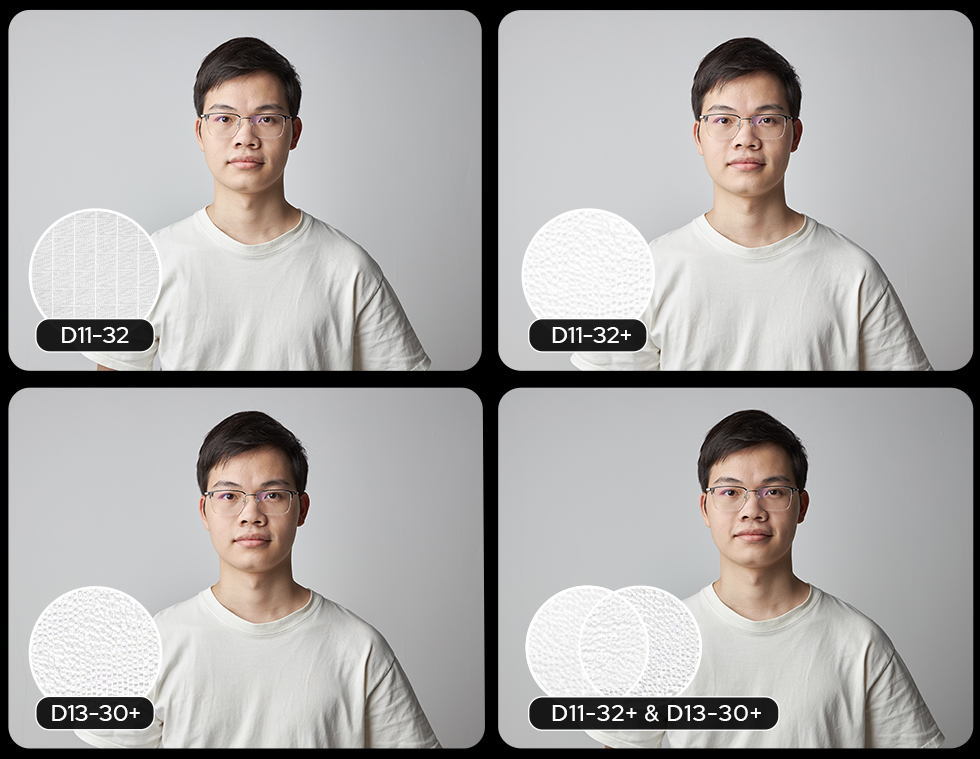

With detachable microstructure diffusion fabrics, including D11-32, D11-32+, and D13-30+, AM800R creates smooth, natural softness across multiple diffusion levels. Pair it with the grid to reduce spill, control the beam, and shape the light with precision.

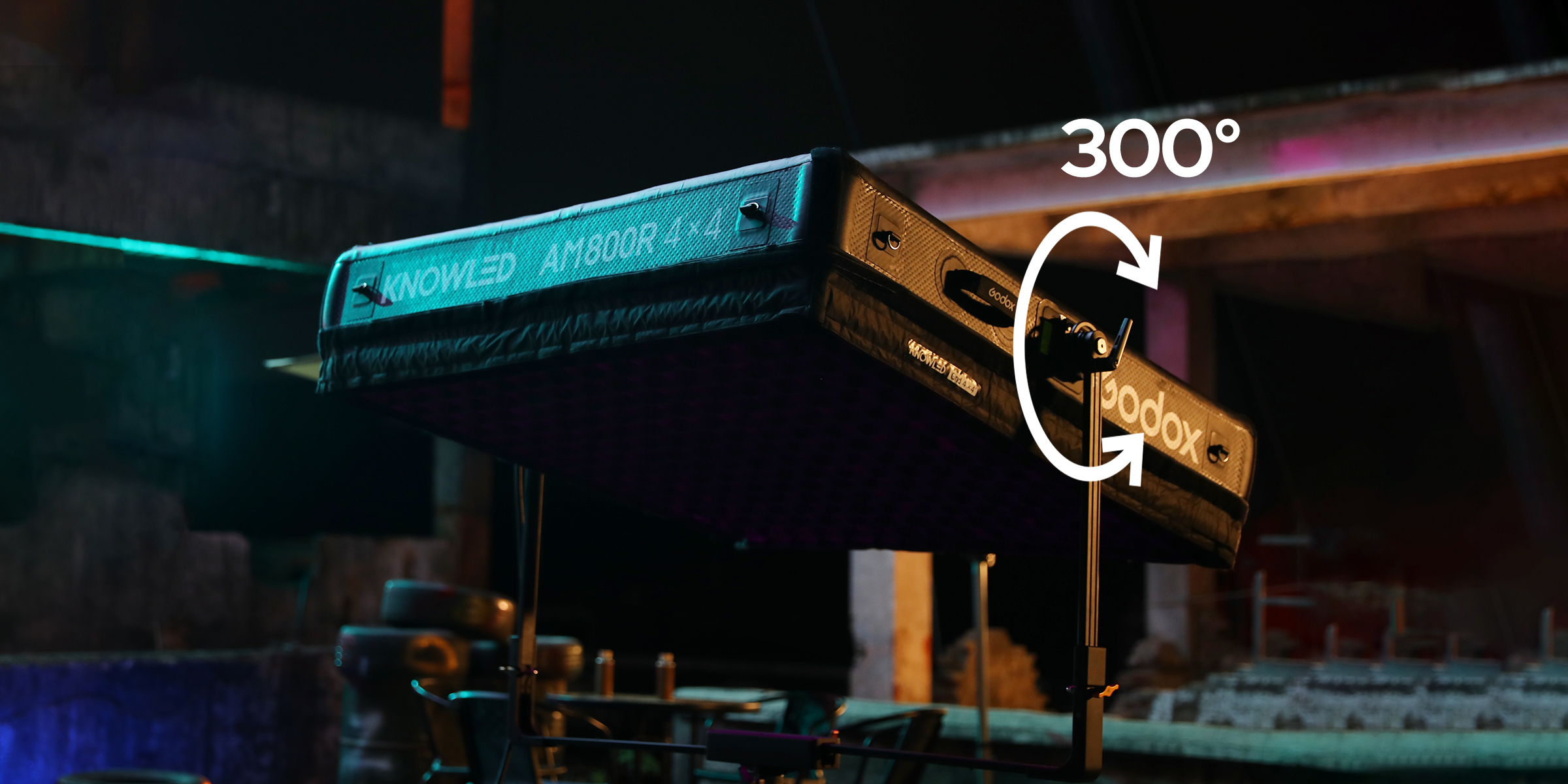

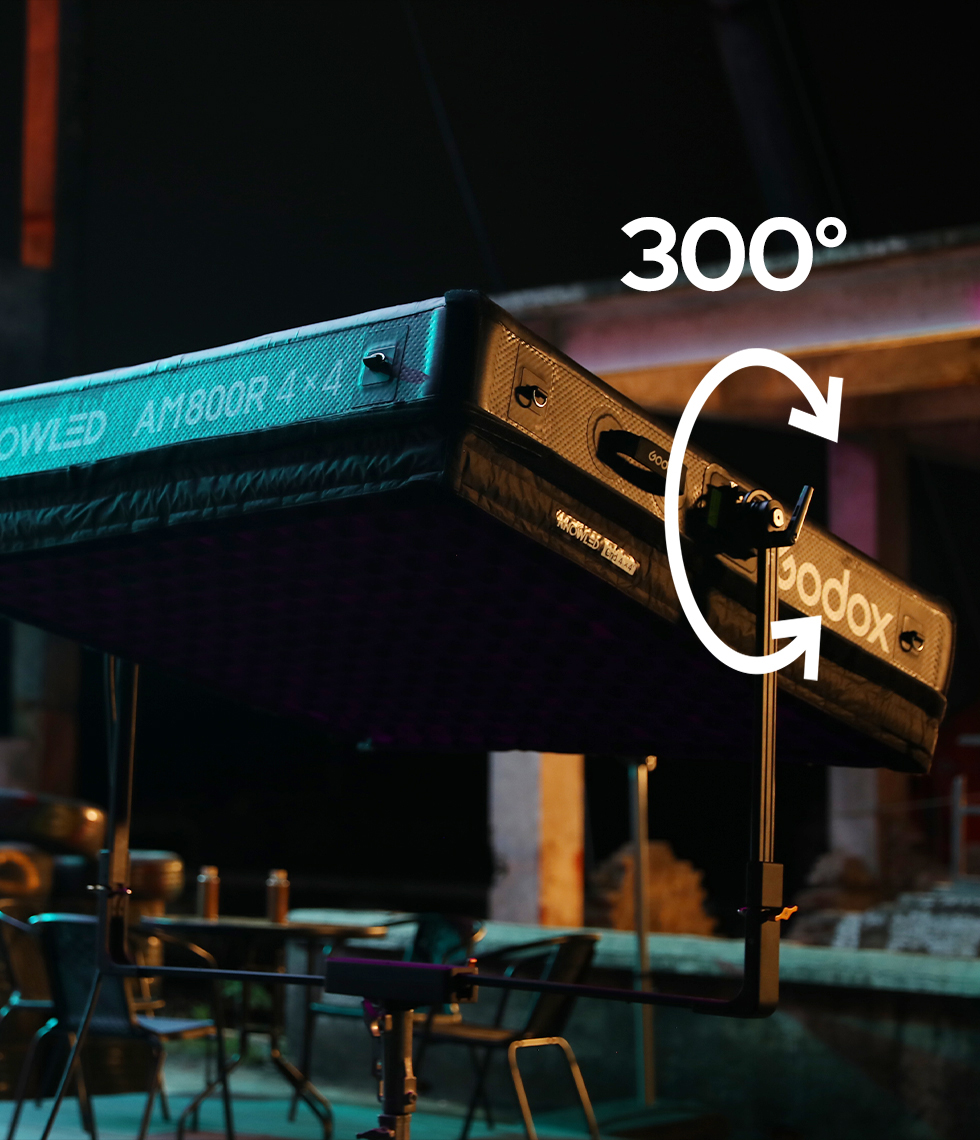

Flexible Mounting
AM800R supports floor-mounted setup, boom-arm mounting, and truss-free rigging for flexible use across production scenarios. With a quick-mount design and 300° adjustment range, the foldable U-bracket enables fast setup and precise angle control on set.

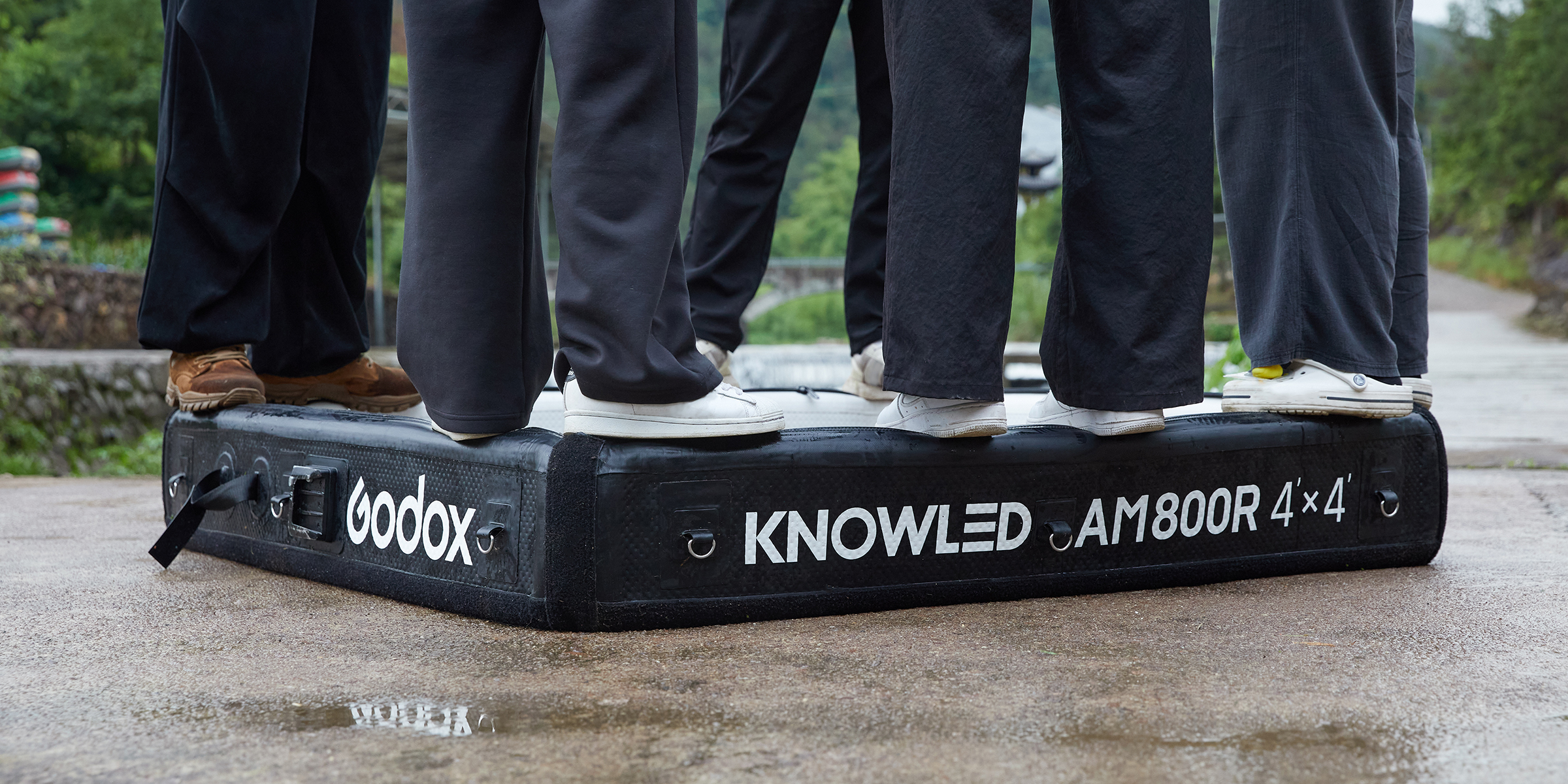

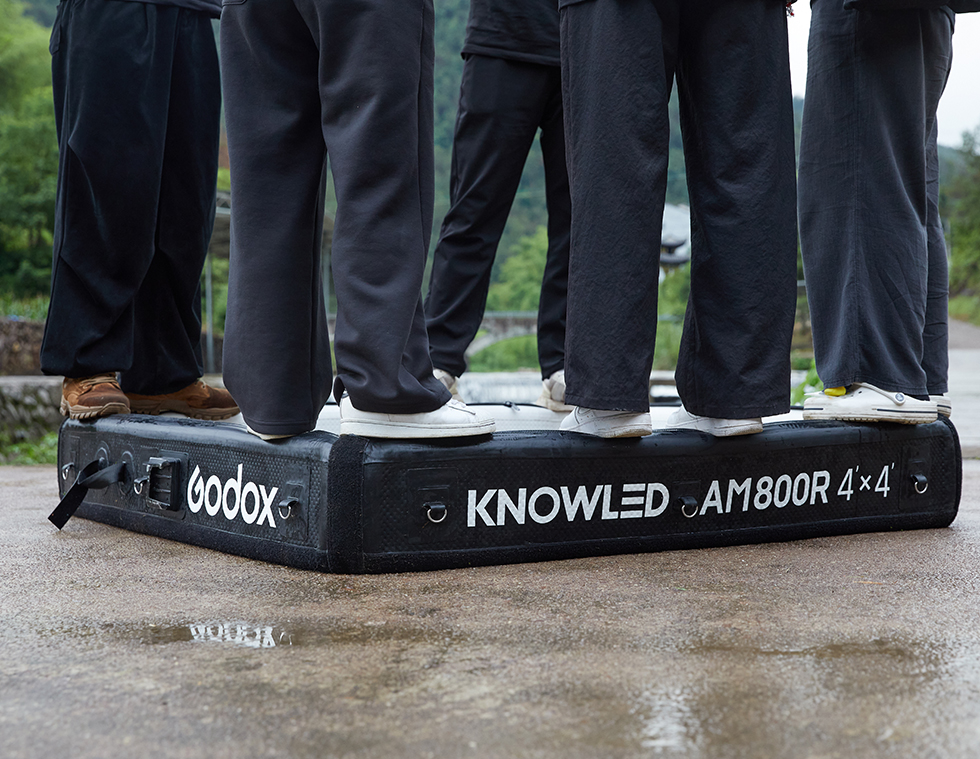

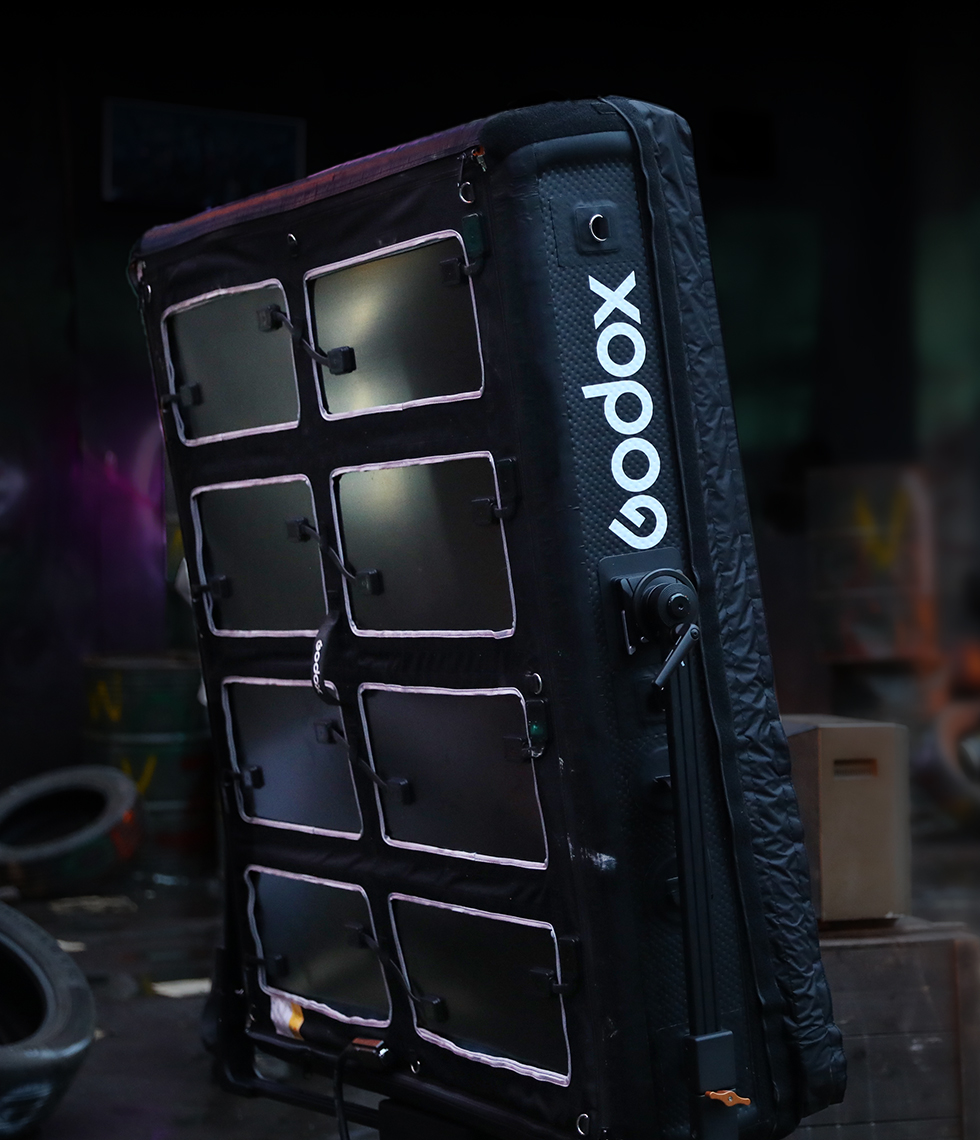

Built Stronger for Lasting Durability
From the carbon fiber backplate to the reinforced inflatable fabric, AM800R is built for demanding production environments. The backplate supports the flexible PCB to reduce deformation stress, while the rugged airframe resists scratches, abrasion, and frequent on-set handling for long-lasting durability.

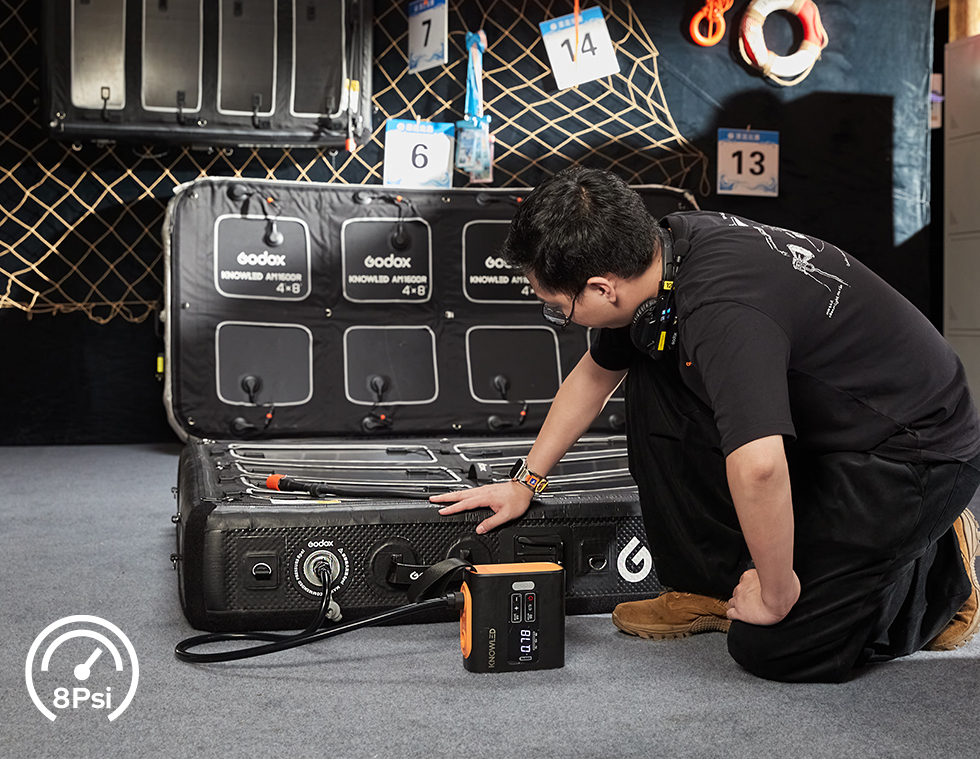

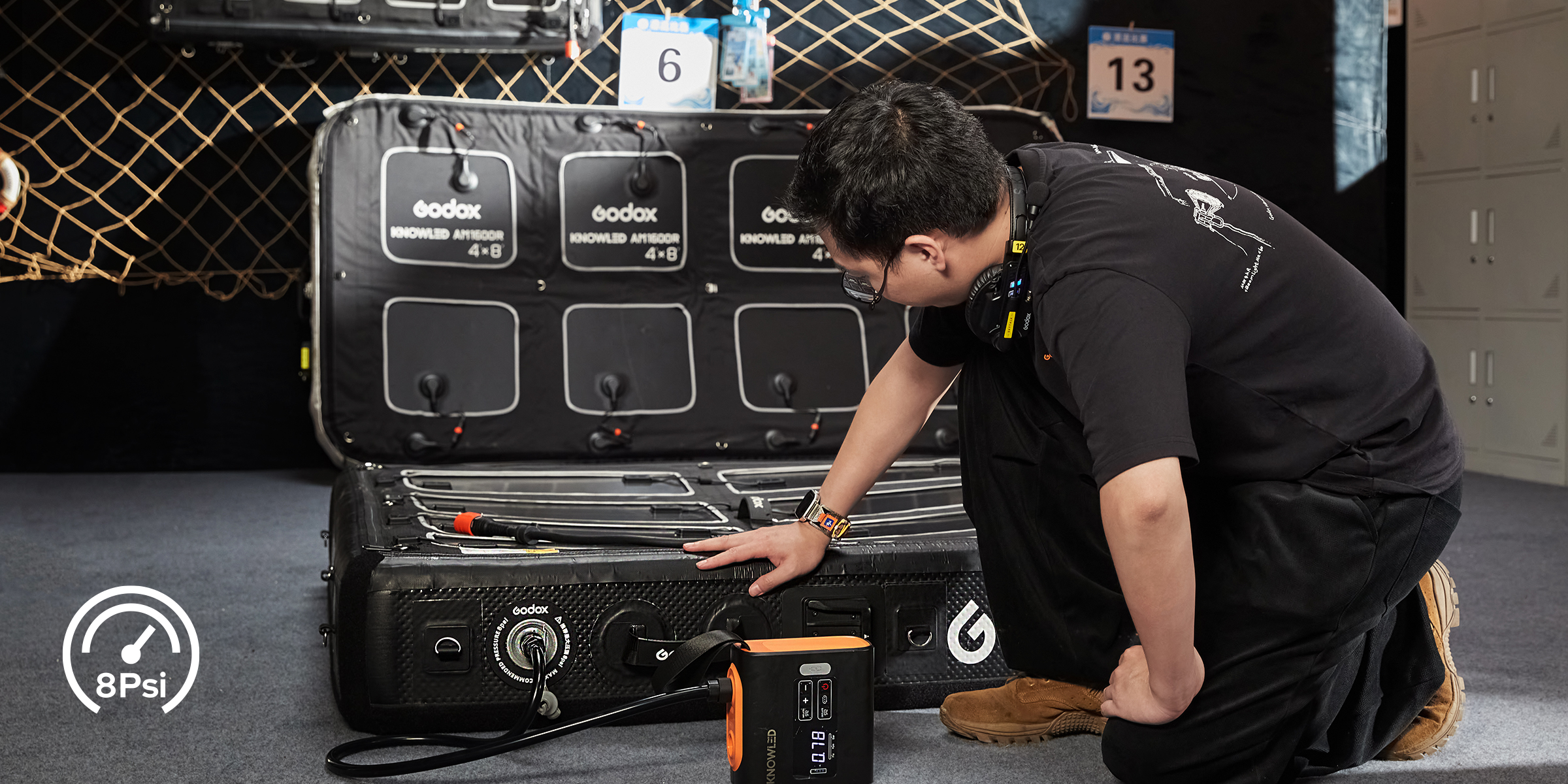

Inflate Fast, Stay Ready

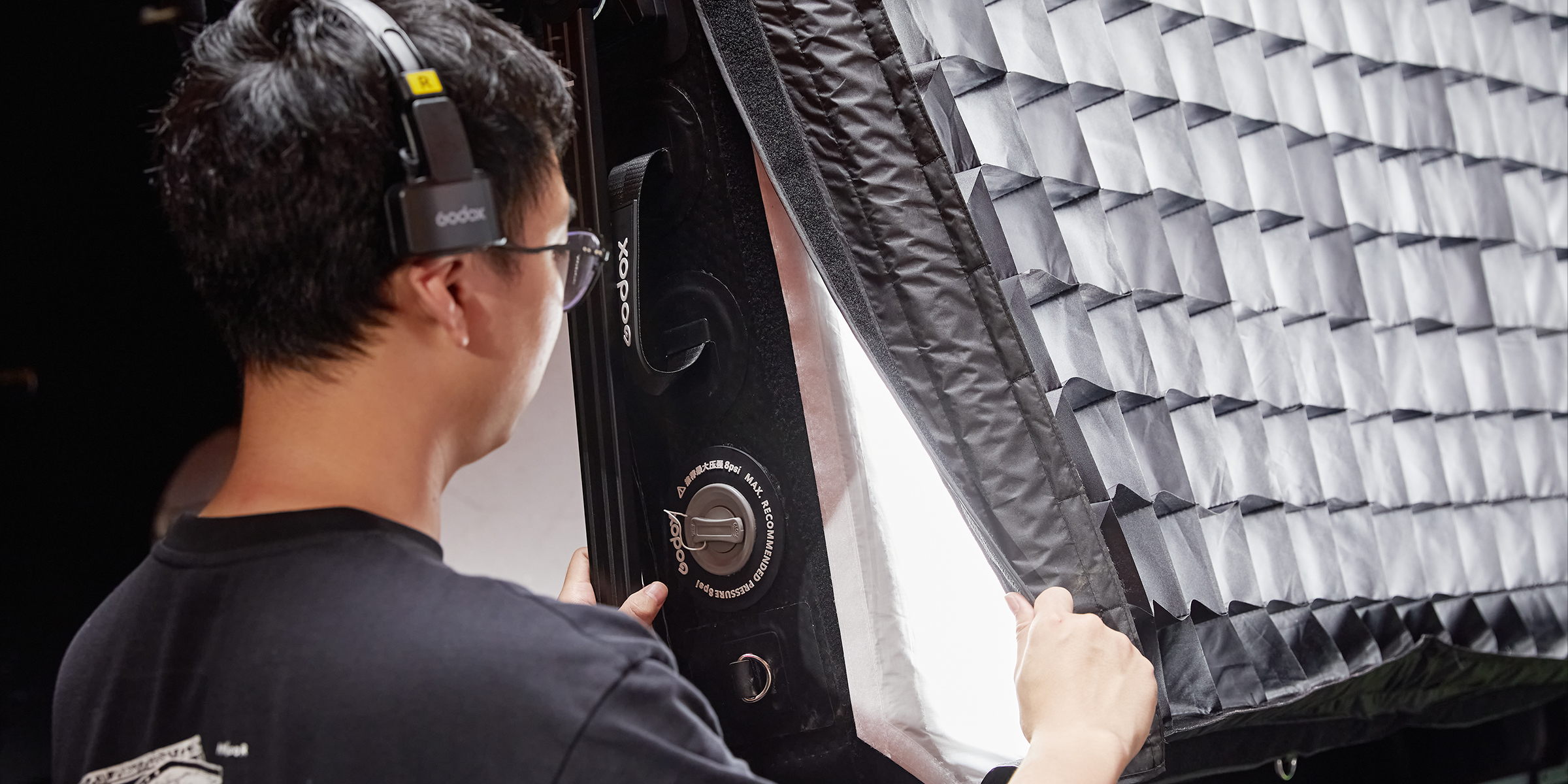

Inflating to 8 PSI in about 1 minute, AM800R holds its shape for up to 15 days after a single inflation, reducing maintenance and keeping production moving efficiently.

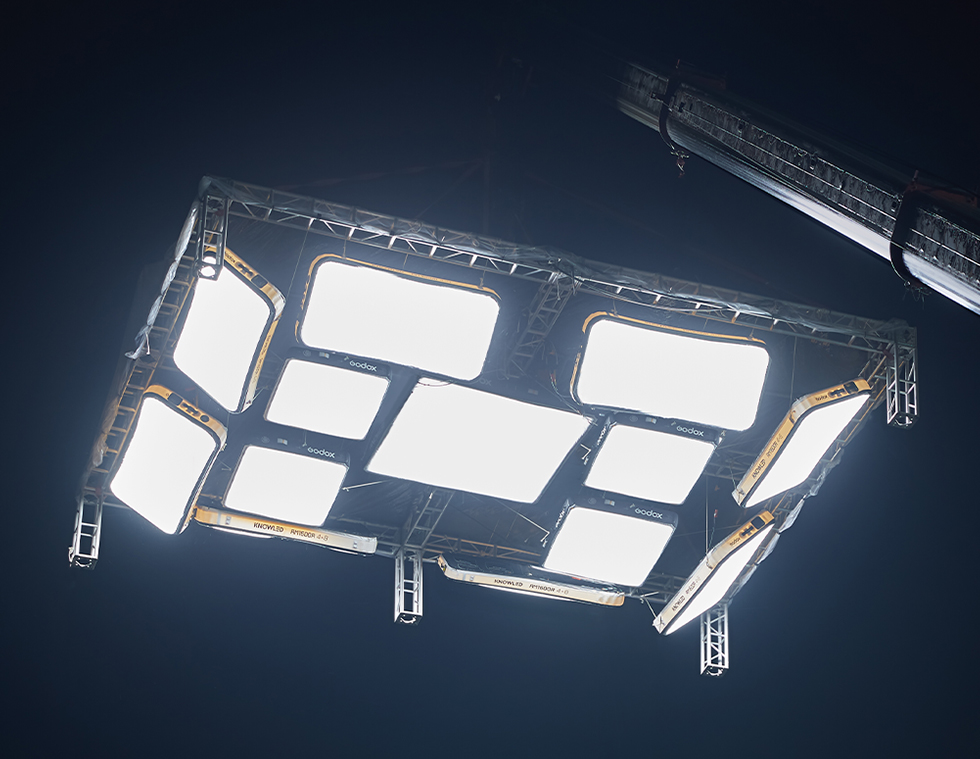

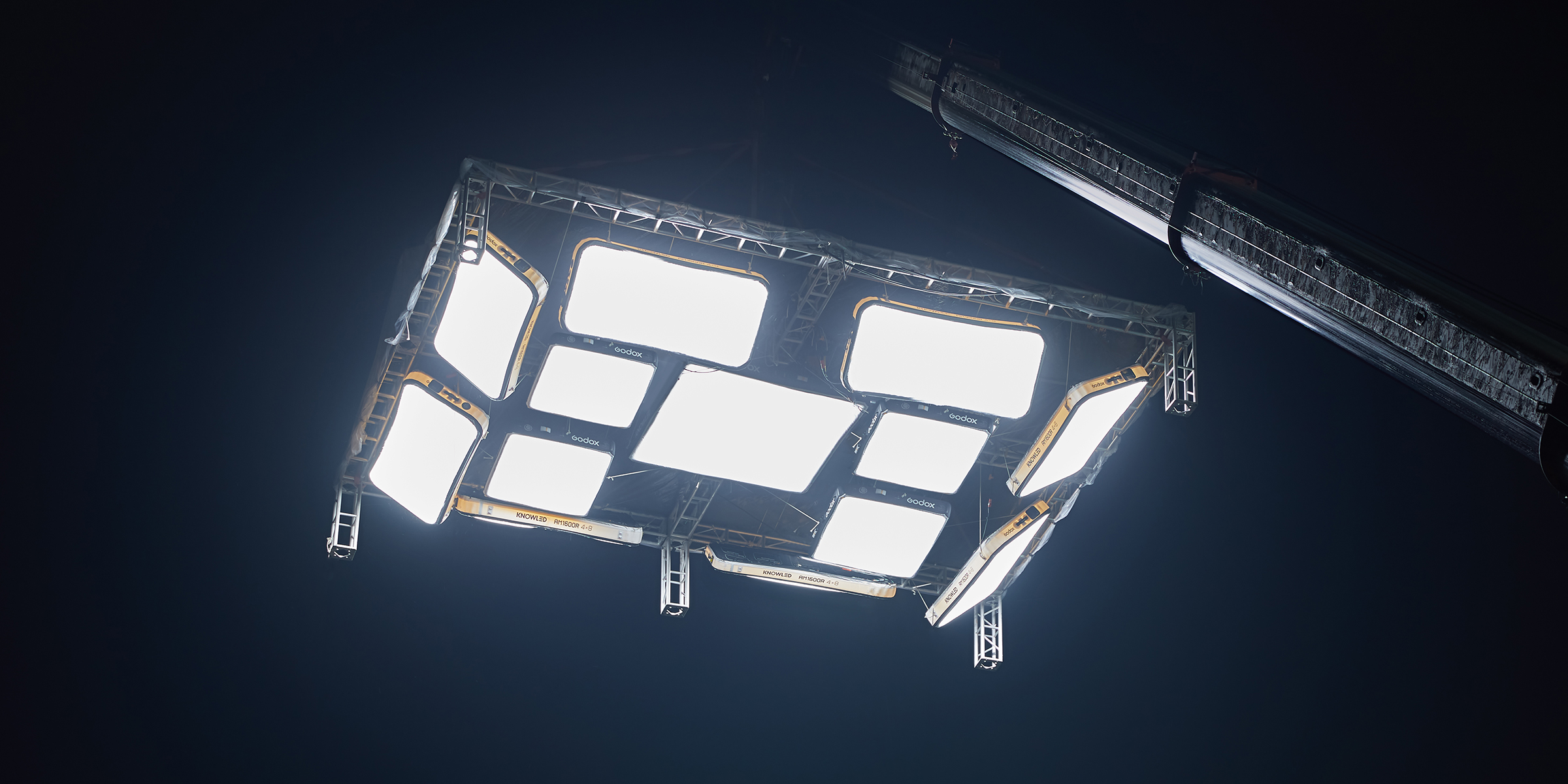

Scalable Setup
With high-strength D-rings, multiple AM800R units can be quickly linked together to create larger lighting surfaces, giving crews greater flexibility for different set requirements.

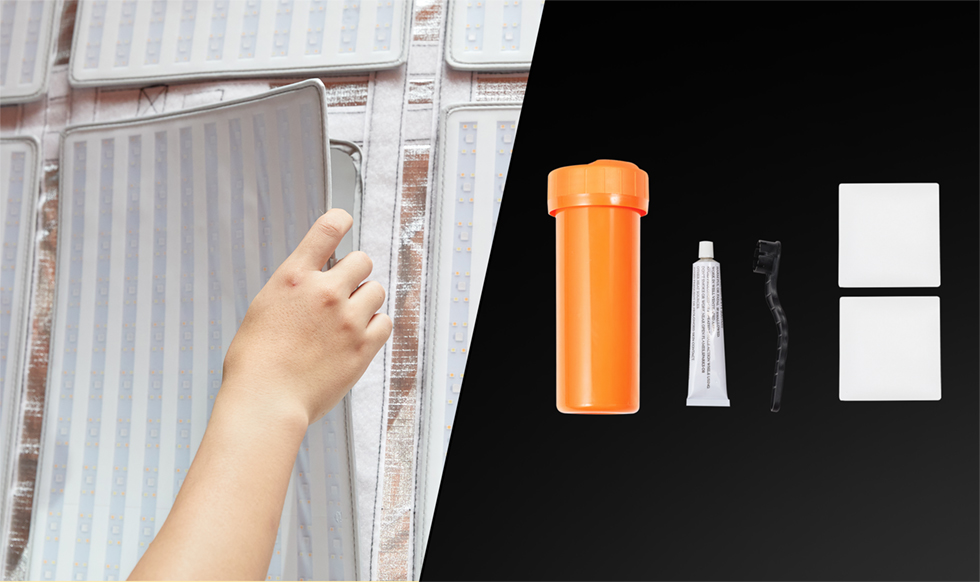

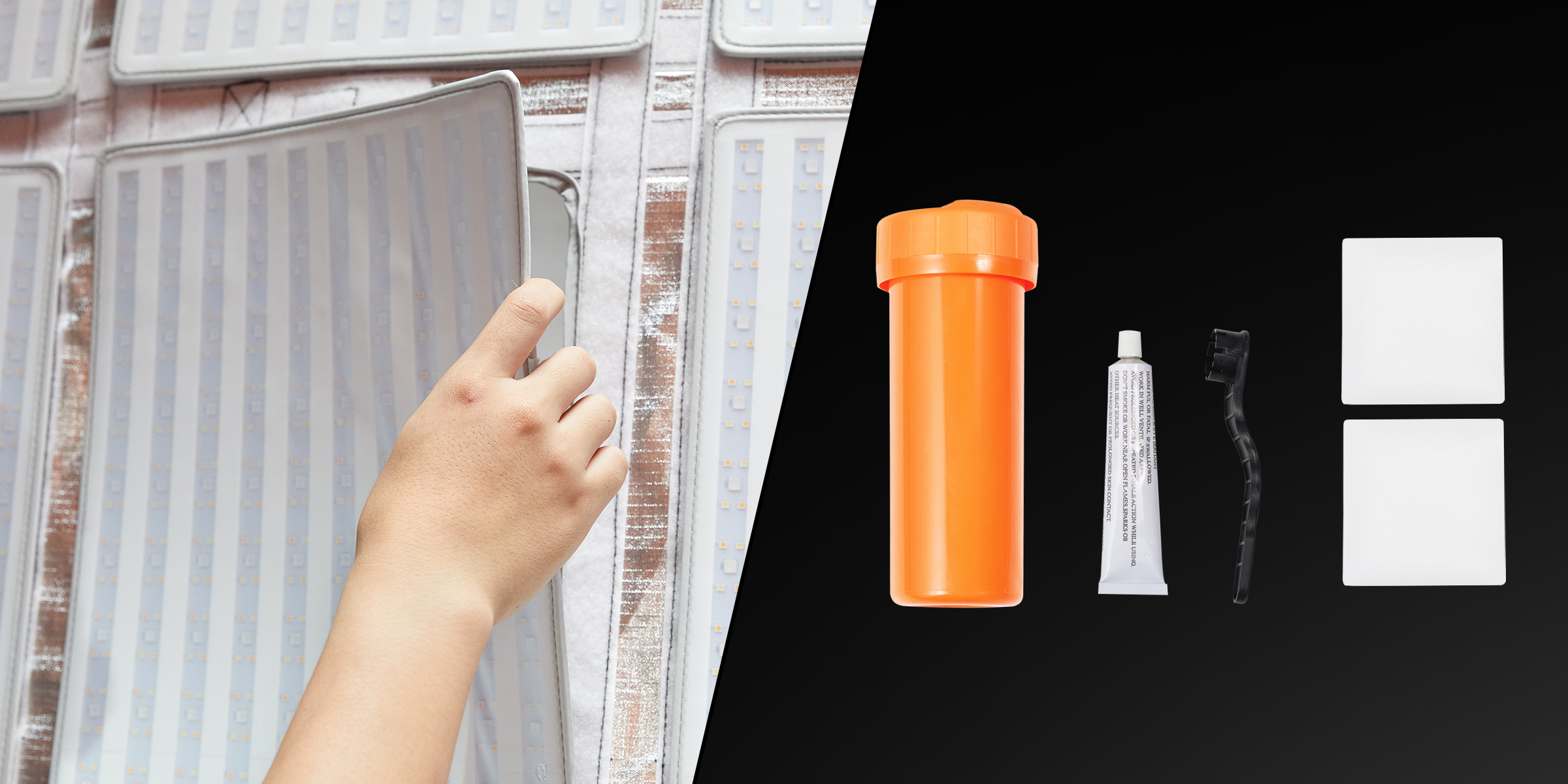

Easy Maintenance, Lower Costs

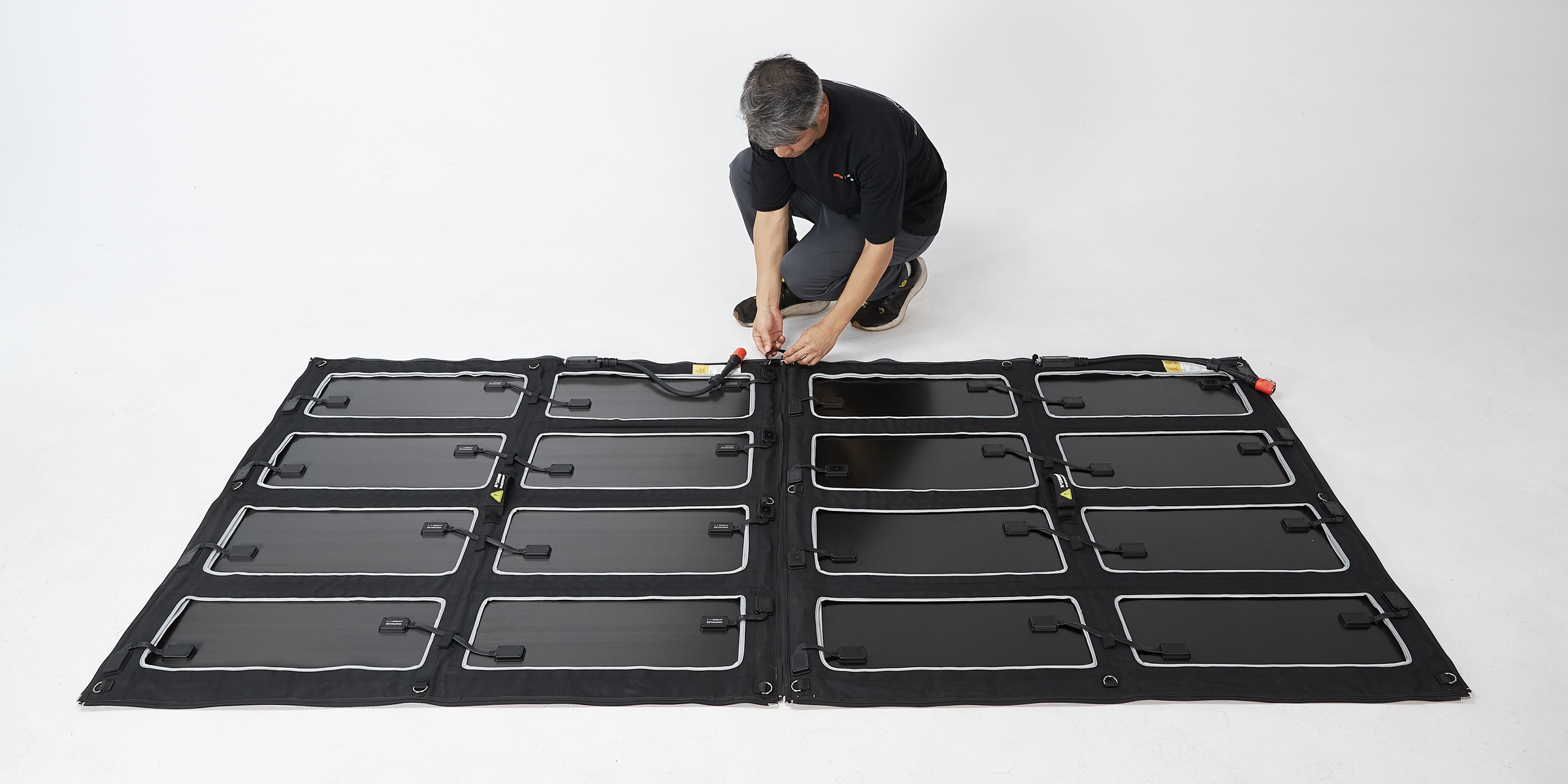

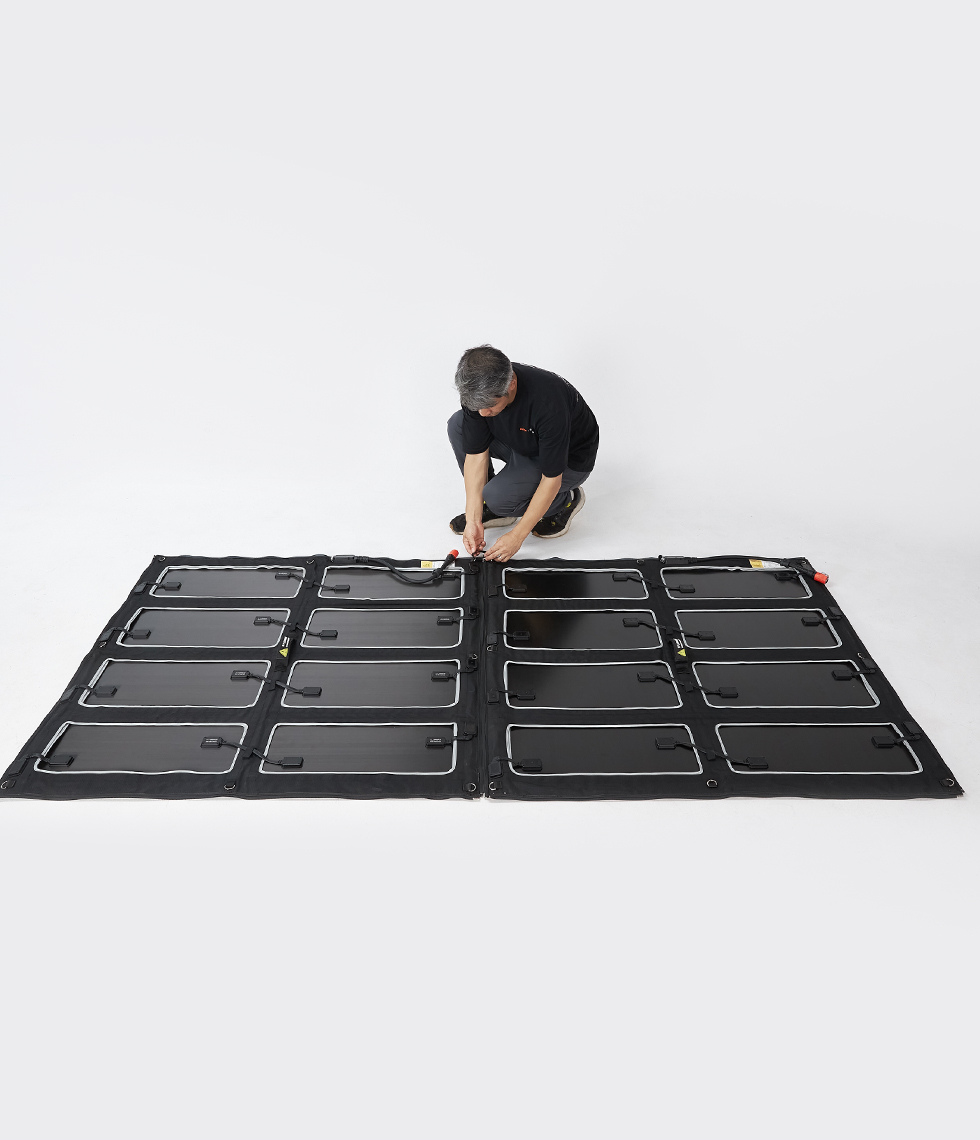

From replaceable LED modules to an included airframe repair kit, AM800R is designed for fast maintenance and reliable long-term use, helping crews stay efficient on set.

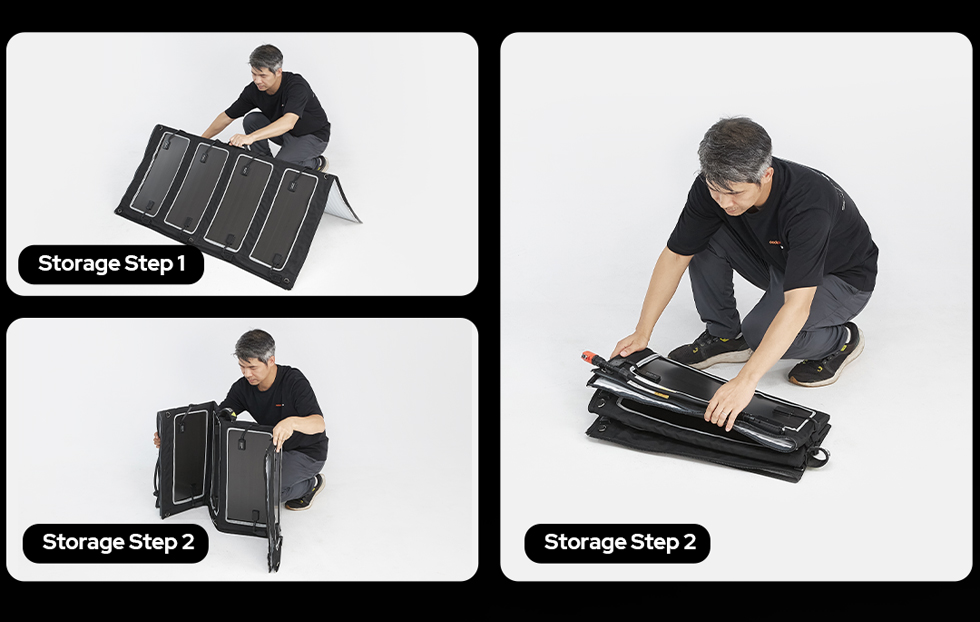

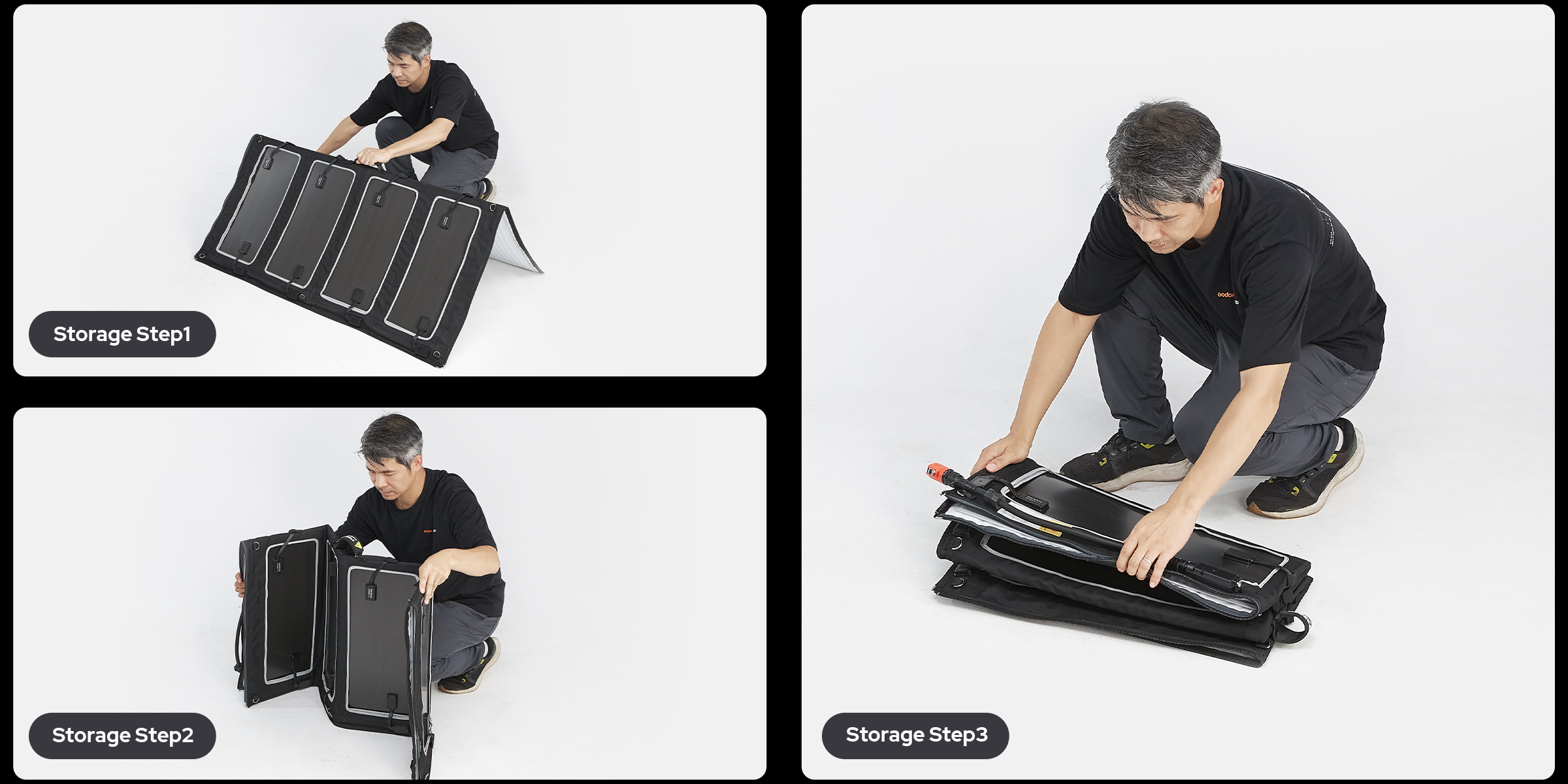

Foldable Design for Easy Transport

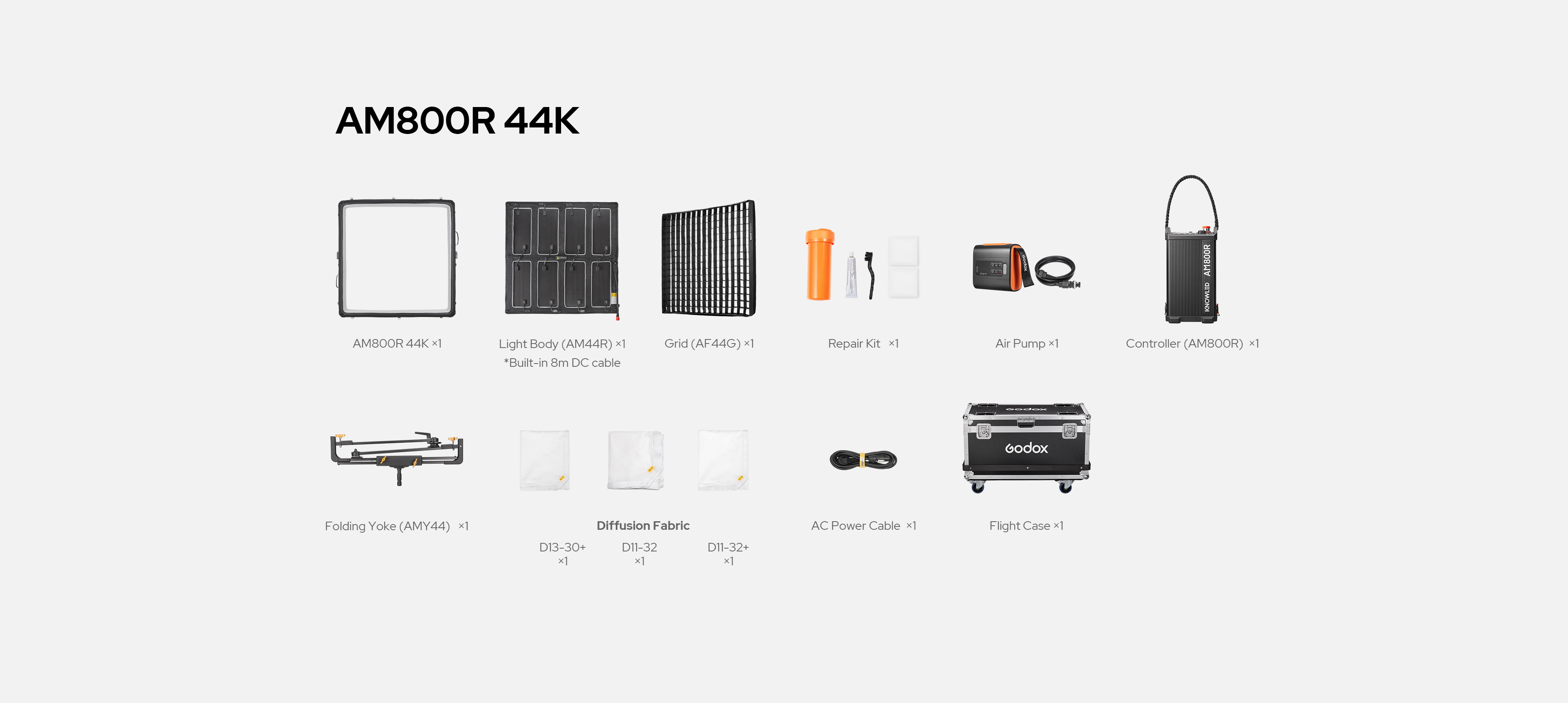

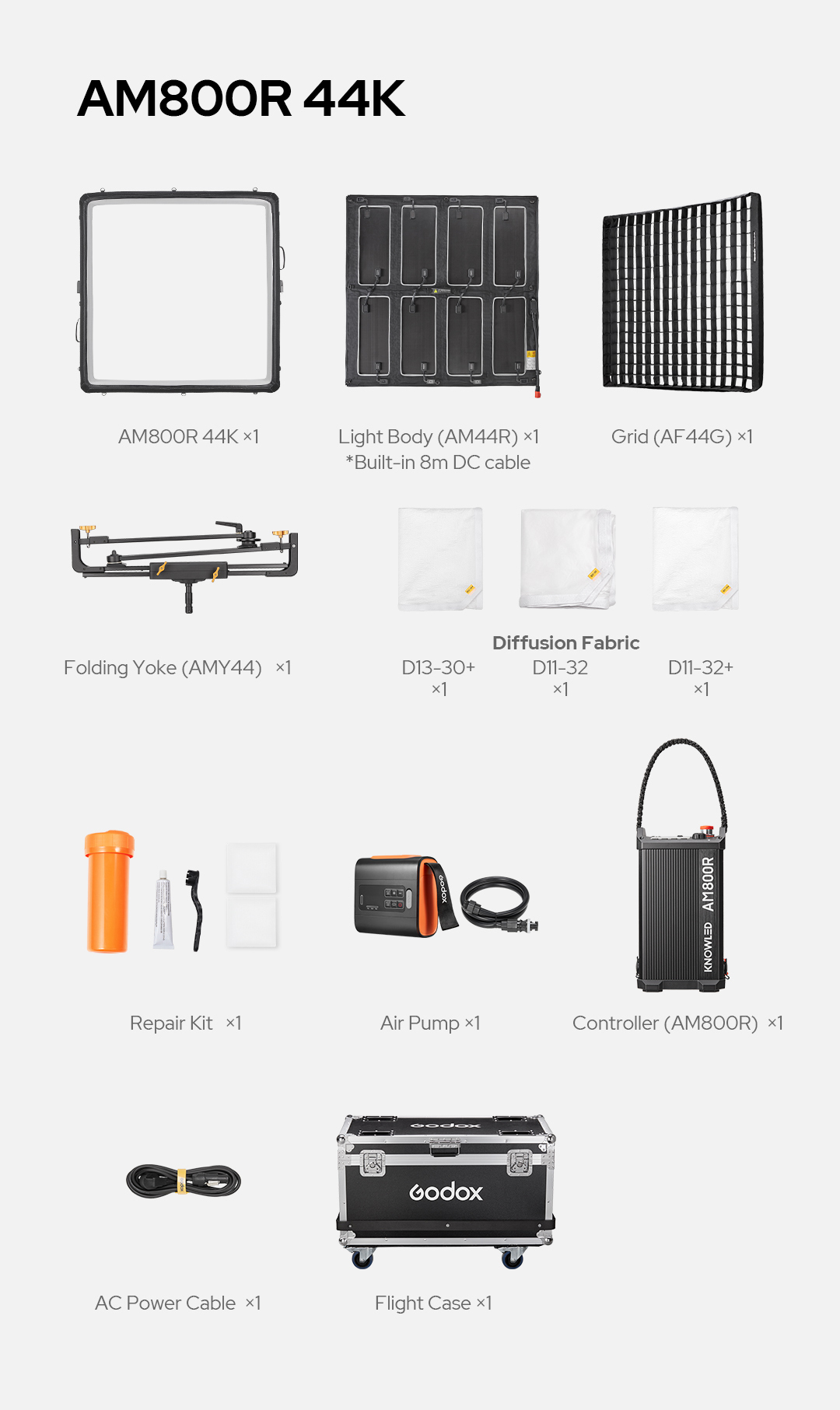

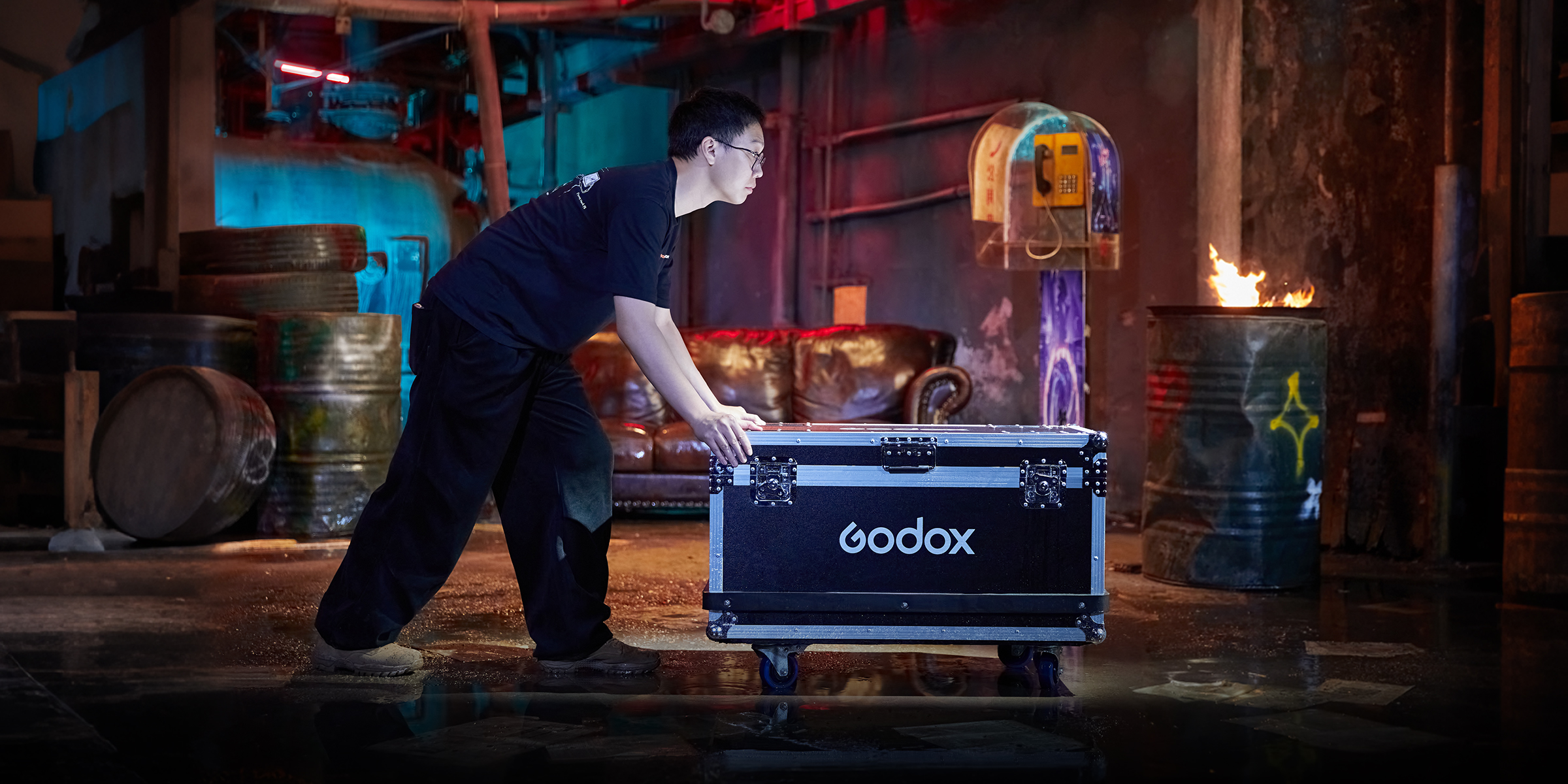

AM800R’s foldable light body, inflatable butterfly airframe, U-bracket, and accessories pack neatly into a custom flight case, making storage, transport, and location moves faster and easier.

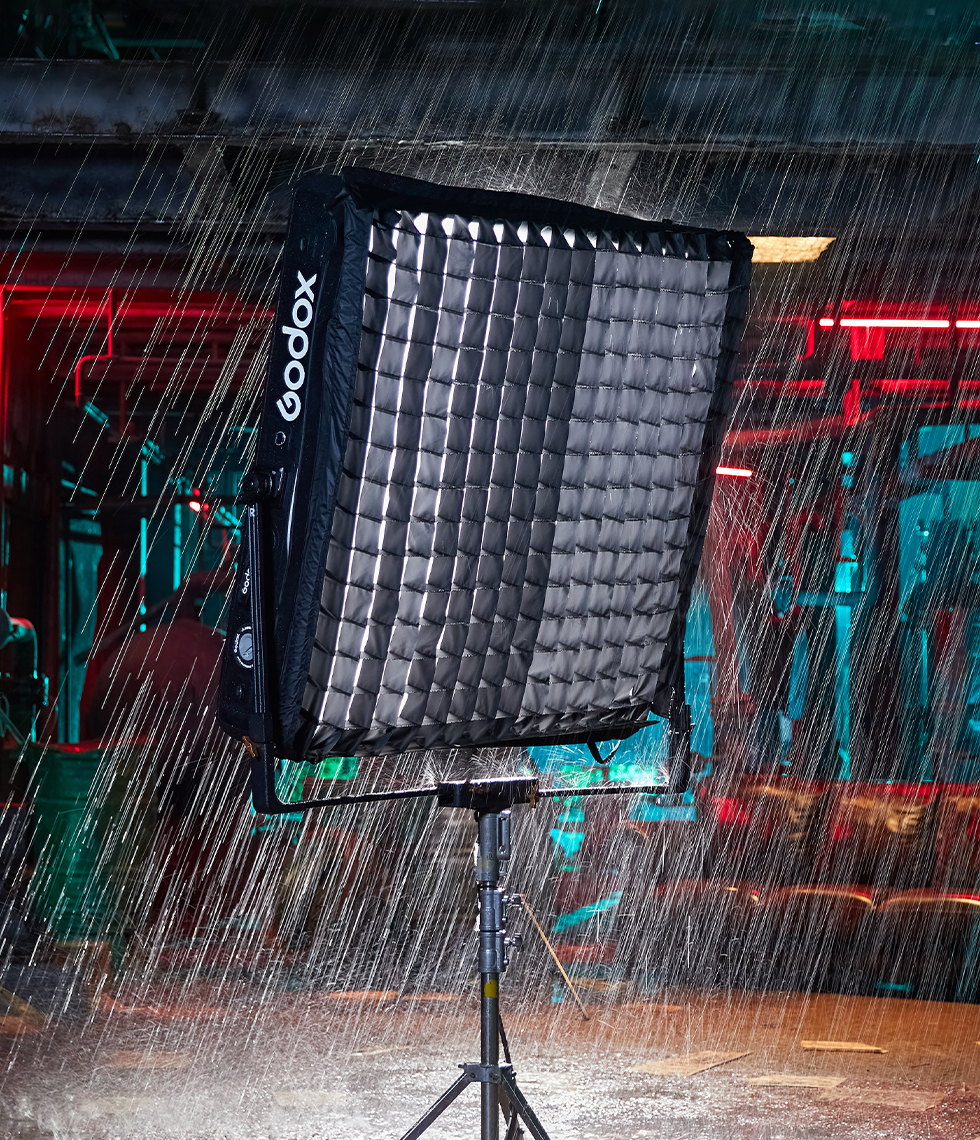

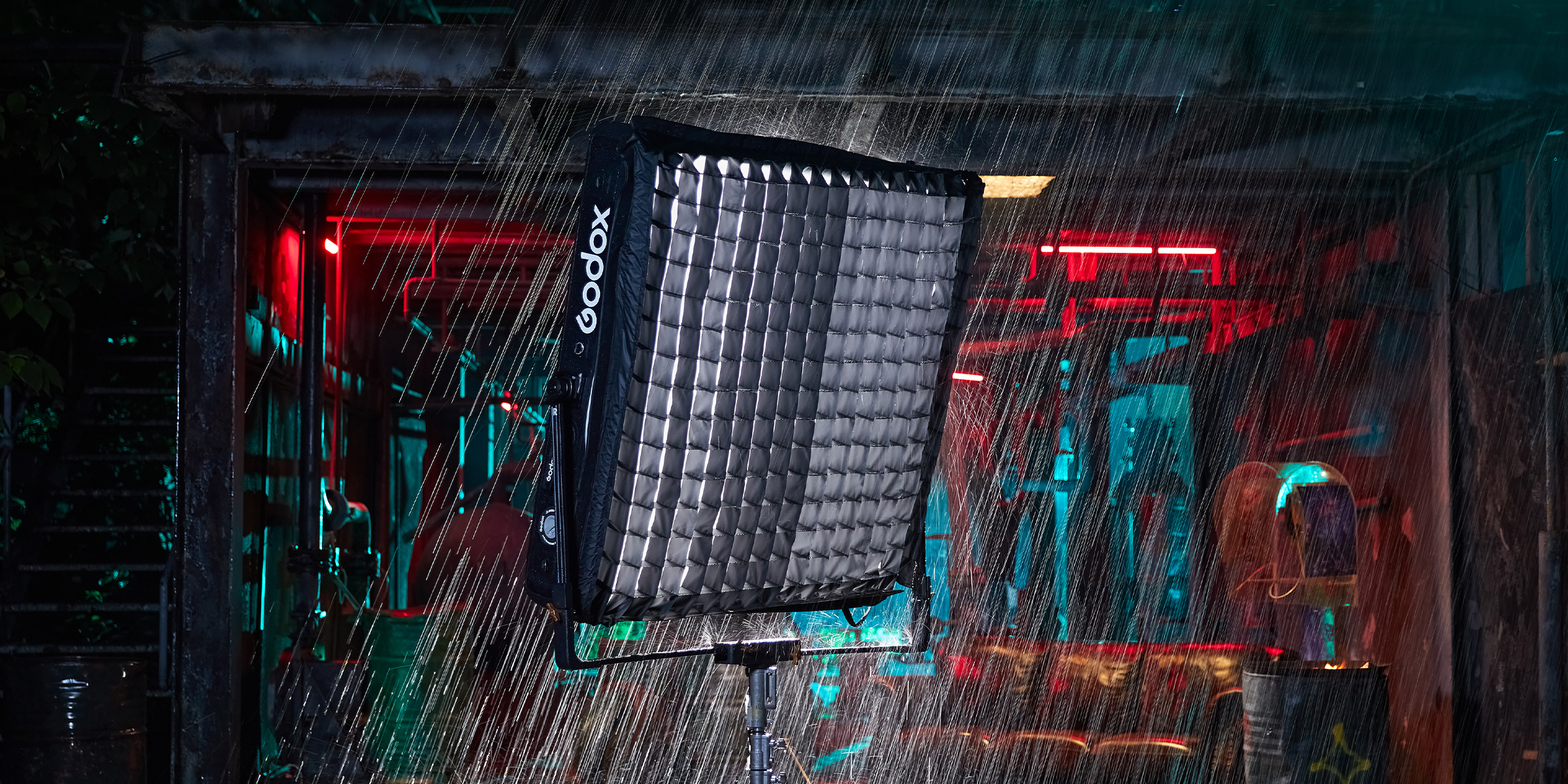

IP65 Weather Resistance
Built to handle unpredictable weather, the AM800R’s light body and controller meet IP65 standards, providing reliable protection against rain, dust, and challenging outdoor conditions.

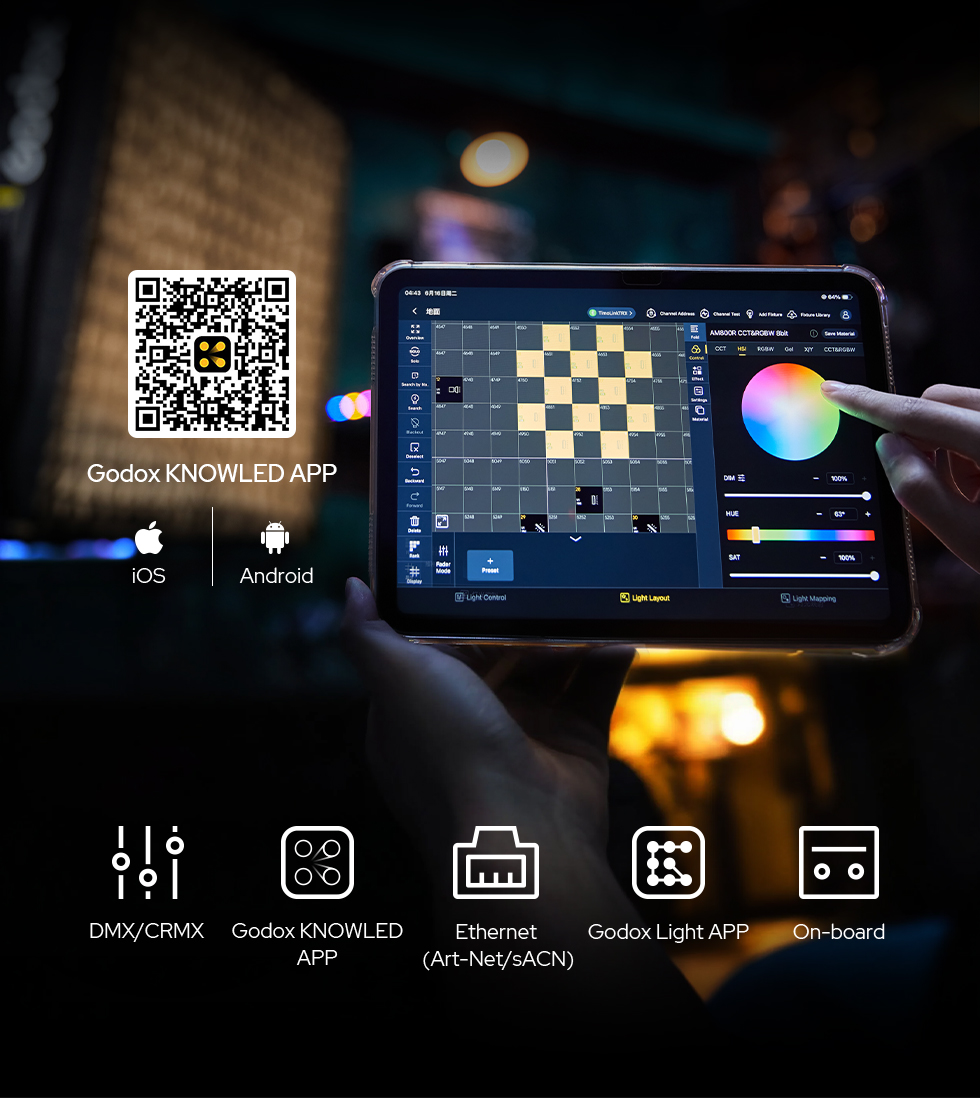

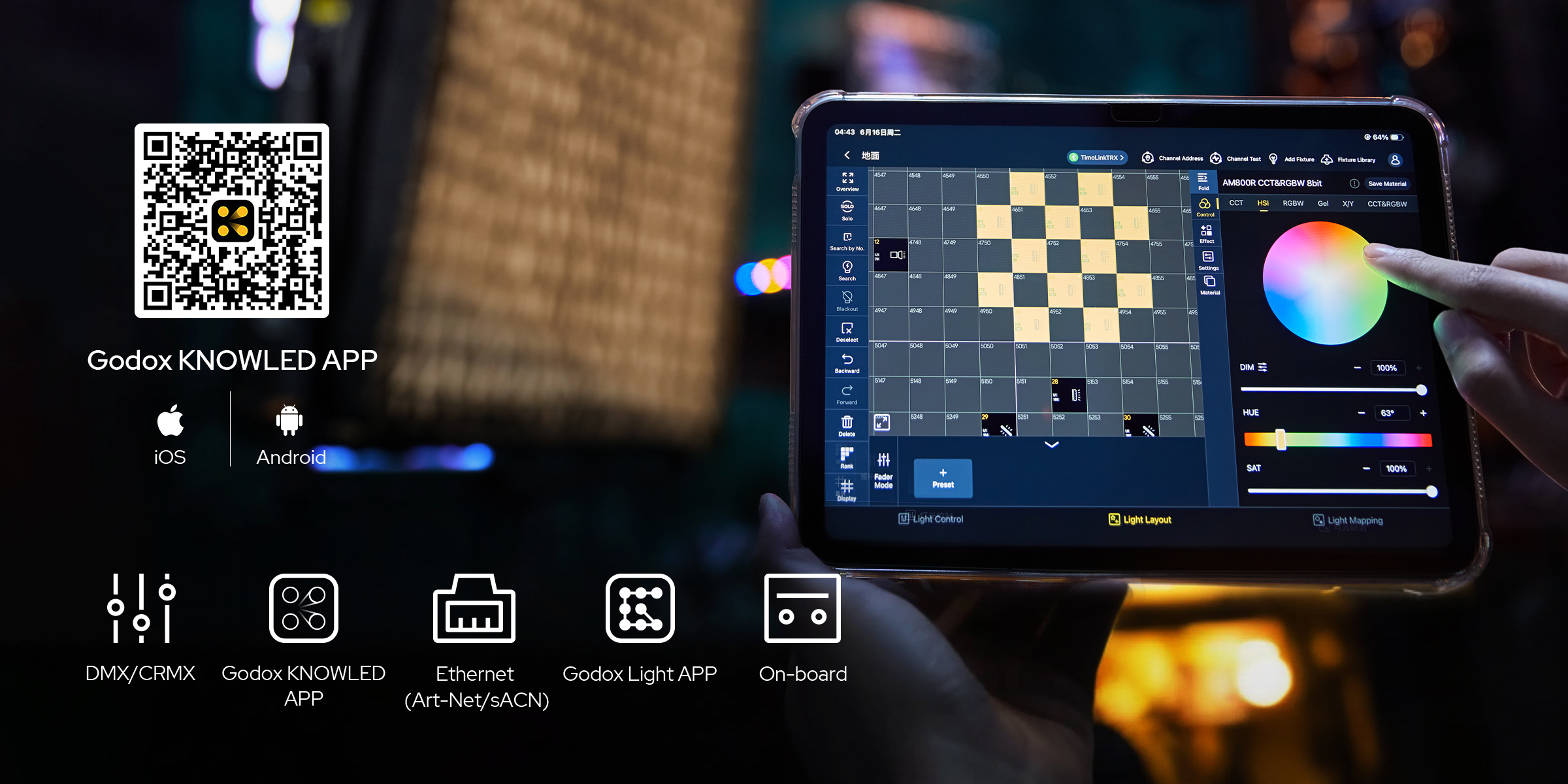

Every Pro Control You Need
The AM800R covers every professional control methods you expect on set - CRMX, DMX, Ethernet, KNOWLED App and On-board control - for stable multi-light sync and precise, real-time adjustments in complex lighting environments.

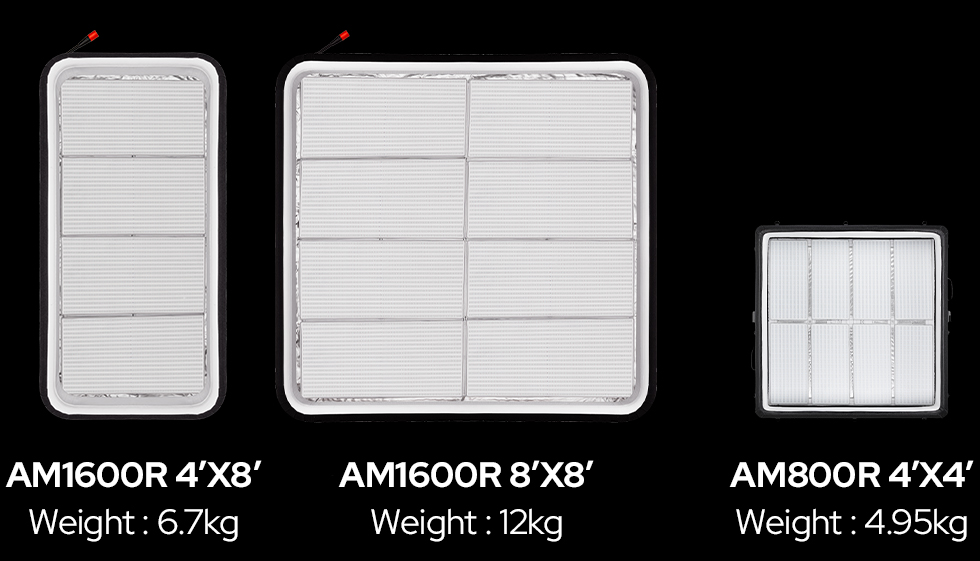

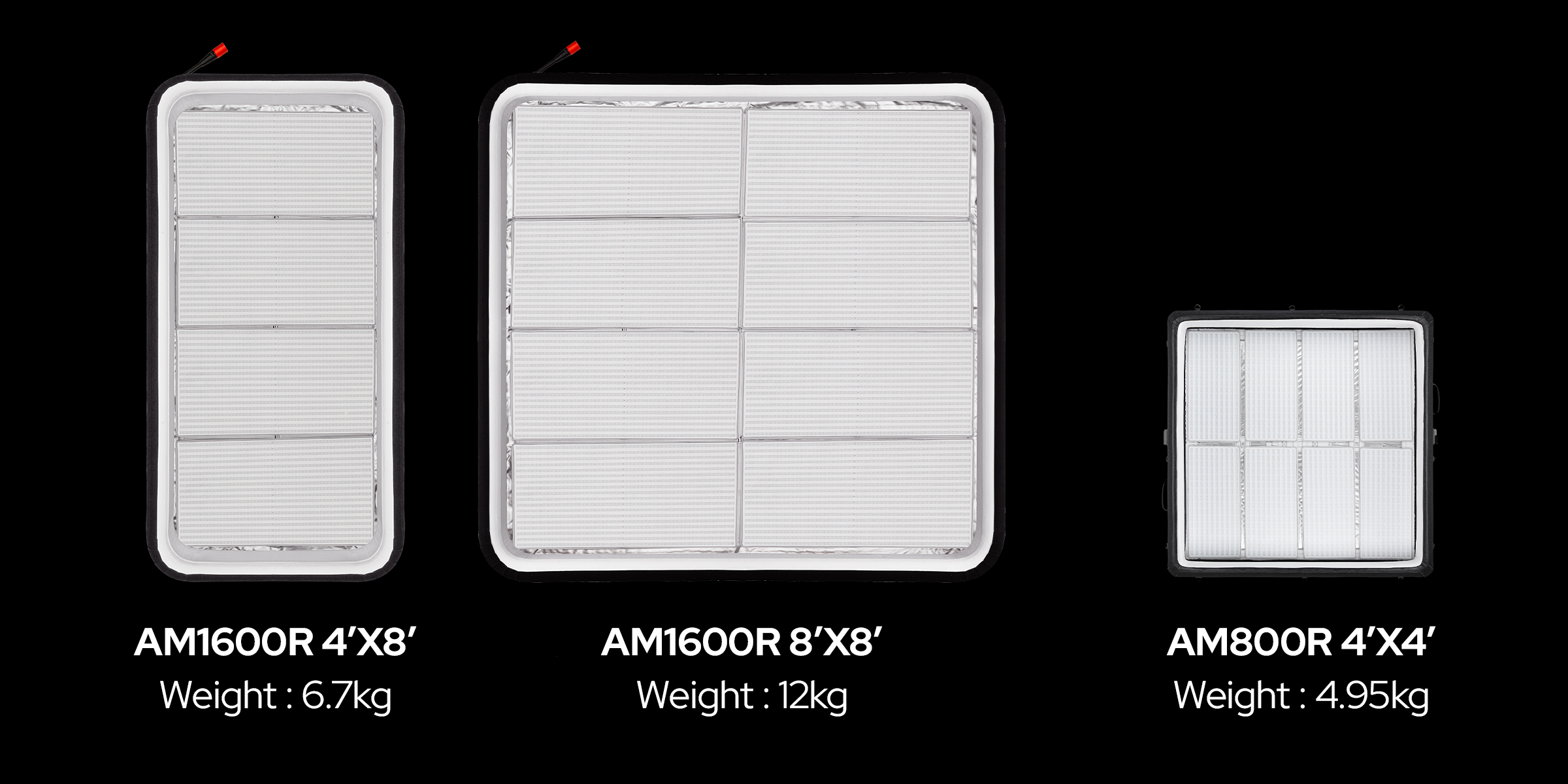

Available in Three Sizes
Available in 4’×4’, 4’×8’, and 8’×8’, the AM Series adapts to different lighting setups, giving crews the flexibility to choose the right source size for every production.
Recommendation
Tech Specs
| Model | AM800R 44K |
| AC INPUT Port | 110V-240V 50/60Hz 800W |
| CCT Range | 1800K-10000K |
| GM Adjust | -100%~100% |
| Brightness Range | 0.0%~100.0% |
| Dimming Curves | Linear, S-curve, Exponential, Logarithmic |
| FX Modes | 12 |
| CRI | ≈96 |
| TLCI | ≈98 |
| Weather Resistance Rated | IP65 |
| Controlling Methods | DMX/RDM, CRMX, Ethernet, Bluetooth, Controller control |
| Bluetooth Controlling Distance | 60m |
| USB-A Port | Firmware Upgrade/5V⎓1.5A Power Supply |
| Working Environment Temperature | -20℃~45℃ |
| Dimension (without inflatable butterfly frame) | AM800R: 120*120cm |
| AM800R Controller: 31.5*18*14cm | |
| Net Weight (without inflatable butterfly frame) | AM800R: 4.95kg |
| AM800R Controller: 6.40kg |
